ABU DHABI FUTURE PACKAGE 9 SCHOOL (GHAYATHI) PACKAGE 4
- Client: MUSANADA
- Consultant: NEB CONSULTANCY OFFICE
- Main Contractor: AIROLINK
Scope of Work: MEP WORKS
Owner: MUSANADA
Consultant: NEB CONSULTANCY OFFICE
Contractor: AIROLINK
Status: Under Execution
Project Profile
The project is the Construction of new School in Ghayathi for Abu Dhabi Future School program Phase 9 – Package 3 as following:
School for 1700 Student at Ghayathi
This project forms part of Phase 9 of Abu Dhabi Future School Program that was initiated by the CLIENT - Department of Education and Knowledge (ADEK) in the year 2009 for the purpose of enhancing the educational infrastructure development and improving learning experience in various areas within the Emirate of Abu Dhabi.
Project Description

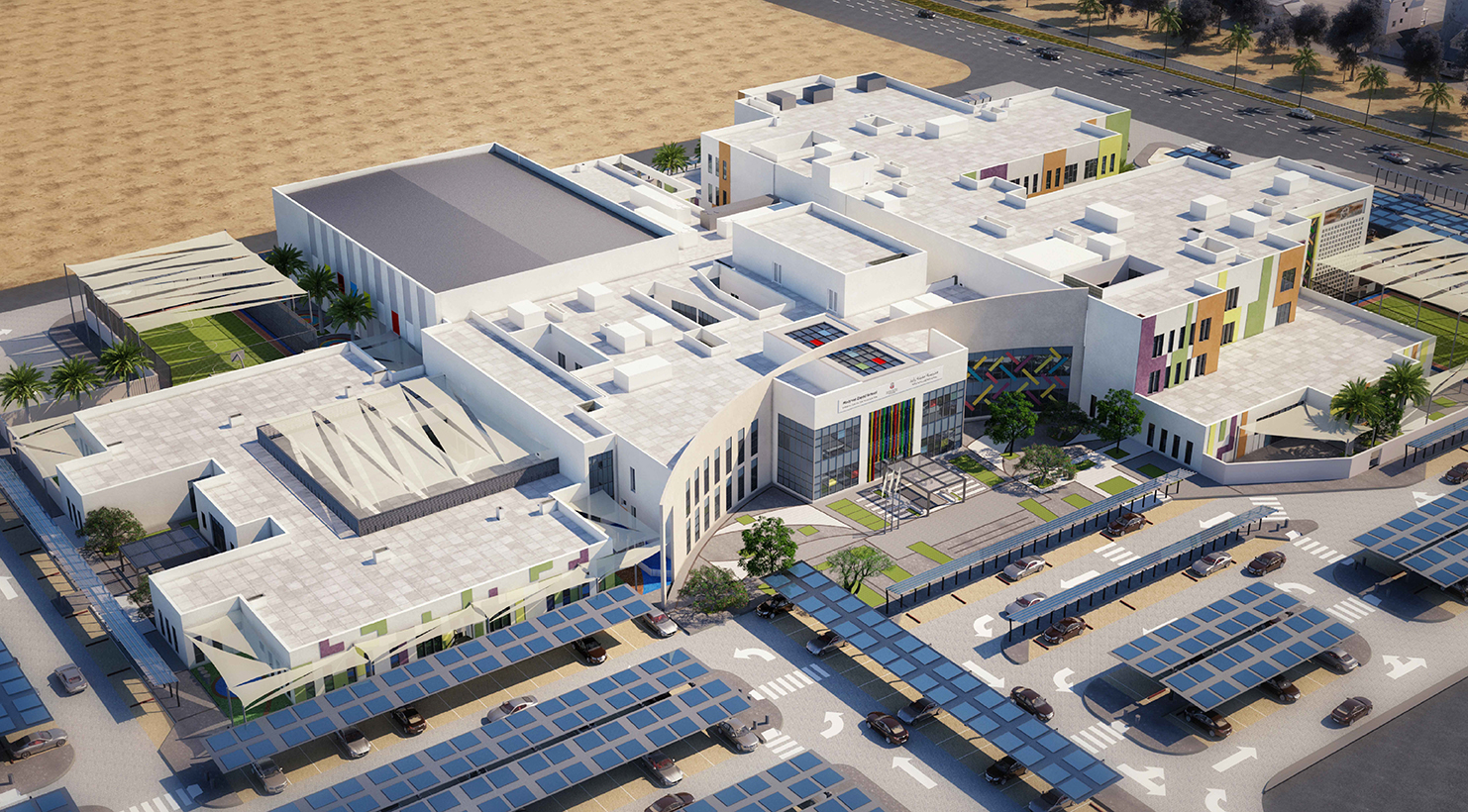

The designed School with total GF area is (25,547.9) m2. The project is consisting of the following:
- Main School building with ground floor, first floor and second floor for Ghayathi.(and some service rooms at roof), with total built-up area of (25,826) m2 (as per drawings).
- Service Block building with total built-up area of (159.9) m2 (as per drawings).
- Substation building with total built-up area of (232.9) m2 (as per drawings).
- School will include Classrooms, In-door Breakout Areas, Teachers Zone, Assembly areas, Administration offices, in addition to Toilets and Other Facilities.
- School will include Outdoor Spaces, shaded Assembly Zones Playground, Landscaping, Pedestrian Ways, Roads, Bus Drop-offs, Staff and Visitors Parking.
SCOPE OF WORK
MEP construction scope of works shall include supply, installation, testing & commissioning and maintenance during the warranty period and consist of but not limited to the following items.
- ELECTRICAL SYSTEM
- LV Switchboard (MDB’s ,SMDB & DB’s)
- LV Cables between MDB, SMDB,DB, MCC and Isolators within the school
- Capacitor Banks
- Generator and ATS
- Glands & Lugs
- Isolators and Wiring Accessories
- Light Fixtures
- Wiring Accessories.
- Earthing & Lightning Protection System
- Cable tray and accessories.
- PVC Containment
- ELV SYSTEM
- Central Battery System & Emergency Light System
- Fire Alarm Systems & Fire Evacuations
- Central Battery System
- CCTV and Access Control
- Lighting Control system
- Disable Toilet Alarm System
- Audio Visual System
- Public Address and BGM System
- Installation of containment and cabling for GSM System
- Supply and Installation of structured cabling system for Telephone & Data and security system
- HVAC SYSTEM
- Air Cooled Chillers
- AHU & FAHU
- FCU & DX split units
- Ventilation Fans
- Chilled Water Pumps
- Chilled Water Pressurization Unit
- Chemical Dosing Unit
- Vibration Isolators
- Valves and Accessories
- VAV Units
- BMS
- Refrigerant pipes, Insulation and pipe fittings.
- Ducts with Insulation and Duct accessories.
- Thermostat
- Air Outlets (Grills & diffusers)
- Dampers
- Louvres
- PLUMBING SYSTEM
- Drainage & Water Supply System
- Drainage & Plumbing Valves & Accessories.
- Plumbing Pumps (Booster & Transfer).
- GRP Tanks.
- Electric Water Heaters.
- Sanitary fixtures including mixers, fittings & accessories.
- FIRE FIGHTING
- Fire extinguishers
- Fire Hose Reel Cabinets & Breeching Inlet
- Valves & accessories
- Clean Agent System
- Foam Sprinkler System for Generator Room
